Hai, this article will illustrate you how to upgrade your oracle
database from 11204 to 12102 on linux Platform using dbua.
Assumptions:
11g
ORACLE_HOME:
/u01/app/oracle/product/11.2.0/dbhome_1
12c
ORACLE_HOME: /u01/app/oracle/product/12.1.0/dbhome_1
Assumptions:
Machine
|
IP Address
|
DB Name
|
SID
|
Listener
|
RAC1
|
192.168.1.11
|
DELL
|
DELL
|
DELL
|
[root@rac1 ~]#
[root@rac1 ~]# lsb_release -a
LSB
Version:
:core-4.0-amd64:core-4.0-ia32:core-4.0-noarch:graphics-4.0-amd64:graphics-4.0-ia32:graphics-4.0-noarch:printing-4.0-amd64:printing-4.0-ia32:printing-4.0-noarch
Distributor ID:
EnterpriseEnterpriseServer
Description:
Enterprise Linux Enterprise Linux Server release 5.7 (Carthage)
Release:
5.7
Codename:
Carthage
[root@rac1 ~]#
[root@rac1 ~]# arch
x86_64
[root@rac1 ~]#
[root@rac1 ~]# cat /etc/oratab
#
# This file is used by
ORACLE utilities. It is created by
root.sh
# and updated by
either Database Configuration Assistant while creating
# a database or ASM
Configuration Assistant while creating ASM instance.
# A colon, ':', is
used as the field terminator. A new line
terminates
# the entry. Lines beginning with a pound sign, '#', are
comments.
#
# Entries are of the
form:
# $ORACLE_SID:$ORACLE_HOME:<N|Y>:
#
# The first and second
fields are the system identifier and home
# directory of the
database respectively. The third filed
indicates
# to the dbstart
utility that the database should , "Y", or should not,
# "N", be
brought up at system boot time.
#
# Multiple entries
with the same $ORACLE_SID are not allowed.
#
#
DELL:/u01/app/oracle/product/11.2.0/dbhome_1:N
[root@rac1 ~]#
[root@rac1 ~]# ps -ef | grep pmon
oracle
10403 1 0 08:36
? 00:00:00 ora_pmon_DELL
root
10862 4501 0 08:41 pts/1 00:00:00 grep pmon
[root@rac1 ~]#
Oracle Database (DELL) details:
[root@rac1 ~]#
[root@rac1 ~]# su - oracle
[oracle@rac1 ~]$ . dell.env
[oracle@rac1 ~]$ sqlplus / as sysdba
SQL*Plus: Release
11.2.0.4.0 Production on Thu Dec 21 12:30:50 2017
Copyright (c) 1982,
2013, Oracle. All rights reserved.
Connected to:
Oracle Database 11g
Enterprise Edition Release 11.2.0.4.0 - 64bit Production
With the Partitioning,
OLAP, Data Mining and Real Application Testing options
SQL>
SQL> show parameter spfile;
NAME
TYPE VALUE
------------------------------------
----------- ------------------------------
spfile
string /u01/app/oracle/product/11.2.0
/dbhome_1/dbs/spfileDELL.ora
SQL>
SQL> select NAME, OPEN_MODE, PLATFORM_NAME from v$database;
NAME OPEN_MODE PLATFORM_NAME
---------
-------------------- -------------------------------
DELL READ WRITE
SQL>
Components Validity Check
SQL>
SQL> col COMP_NAME for a38
SQL> col VERSION for a15
SQL> select COMP_NAME,VERSION,STATUS from dba_registry;
COMP_NAME VERSION STATUS
--------------------------------------
--------------- -----------
OWB
11.2.0.4.0 VALID
Oracle Application
Express 3.2.1.00.12 VALID
Oracle Enterprise
Manager 11.2.0.4.0 VALID
OLAP Catalog 11.2.0.4.0 VALID
Spatial 11.2.0.4.0 VALID
Oracle Multimedia 11.2.0.4.0 VALID
Oracle XML
Database
11.2.0.4.0 VALID
Oracle Text 11.2.0.4.0 VALID
Oracle Expression
Filter 11.2.0.4.0 VALID
Oracle Rules
Manager 11.2.0.4.0 VALID
Oracle Workspace
Manager 11.2.0.4.0 VALID
COMP_NAME VERSION STATUS
--------------------------------------
--------------- -----------
Oracle Database
Catalog Views 11.2.0.4.0 VALID
Oracle Database
Packages and Types 11.2.0.4.0 VALID
JServer JAVA Virtual
Machine 11.2.0.4.0 VALID
Oracle XDK 11.2.0.4.0 VALID
Oracle Database Java
Packages 11.2.0.4.0 VALID
OLAP Analytic
Workspace 11.2.0.4.0 VALID
Oracle OLAP API 11.2.0.4.0 VALID
18 rows selected.
SQL>
SQL>
SQL> select INSTANCE_NAME, VERSION from v$instance;
INSTANCE_NAME VERSION
----------------
---------------
DELL 11.2.0.4.0
SQL>
SQL>
SQL>
SQL> select * from v$version;
BANNER
--------------------------------------------------------------------------------
Oracle Database 11g
Enterprise Edition Release 11.2.0.4.0 - 64bit Production
PL/SQL Release
11.2.0.4.0 - Production
CORE 11.2.0.4.0 Production
TNS for Linux: Version
11.2.0.4.0 - Production
NLSRTL Version
11.2.0.4.0 - Production
SQL>
SQL>
SQL>
SQL> col PRODUCT for a20;
SQL> col version for a12;
SQL> col STATUS for a20;
SQL> select * from product_component_version;
PRODUCT VERSION STATUS
--------------------
------------ --------------------
NLSRTL 11.2.0.4.0 Production
Oracle Database
11g 11.2.0.4.0 64bit Production
Enterprise Edition
PL/SQL 11.2.0.4.0 Production
TNS for Linux: 11.2.0.4.0 Production
SQL>
SQL> col platform_name format a35;
SQL> select platform_id, platform_name from v$database;
PLATFORM_ID
PLATFORM_NAME
-----------
-----------------------------------
13 Linux x86 64-bit
SQL>
SQL>
SQL> show parameter compatible
NAME TYPE VALUE
------------------------------------
----------- ------------------------------
compatible string 11.2.0.4.0
SQL>
SQL>
Archive Mode Status
SQL> archive log list;
Database log mode No Archive Mode
Automatic
archival Disabled
Archive
destination
/u01/app/oracle/product/11.2.0/dbhome_1/dbs/arch
Oldest online log
sequence 1
Current log
sequence 2
SQL>
C – R – D Files
SQL> select name,controlfile_type,open_mode from v$database;
NAME
CONTROL OPEN_MODE
--------- -------
--------------------
DELL
CURRENT READ WRITE
SQL>SQL>
SQL> select name from v$controlfile;
NAME
--------------------------------------------------------------------------------
/u01/app/oracle/DELL/control01.ctl
/u01/app/oracle/DELL/control02.ctl
SQL>
SQL> select member from v$logfile;
MEMBER
--------------------------------------------------------------------------------
/u01/app/oracle/DELL/redo03.log
/u01/app/oracle/DELL/redo02.log
/u01/app/oracle/DELL/redo01.log
SQL>
SQL> col tablespace_name for a20
SQL> select tablespace_name,file_name from dba_data_files;
TABLESPACE_NAME
FILE_NAME
--------------------
----------------------------------------
USERS
/u01/app/oracle/DELL/users01.dbf
UNDOTBS1
/u01/app/oracle/DELL/undotbs01.dbf
SYSAUX
/u01/app/oracle/DELL/sysaux01.dbf
SYSTEM
/u01/app/oracle/DELL/system01.dbf
SQL>
SQL>
SQL>
SQL> select name from v$tempfile;
NAME
--------------------------------------------------------------------------------
/u01/app/oracle/DELL/temp01.dbf
SQL>
SQL>
SQL>
SQL> shut
immediate
Database closed.
Database dismounted.
ORACLE instance shut
down.
SQL>
SQL> exit
Disconnected from
Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production
With the Partitioning,
OLAP, Data Mining and Real Application Testing options
[oracle@rac1 ~]$
[oracle@rac1 ~]$ cat
12102.env
export ORACLE_SID=DELL
export ORACLE_BASE=/u01/app/oracle
export
ORACLE_HOME=/u01/app/oracle/product/12.1.0/dbhome_1
export
PATH=$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:$PATH
export
TNS_ADMIN=$ORACLE_HOME/network/admin
LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib/usr/lib;
export LD_LIBRARY_PATH
[oracle@rac1 ~]$
[oracle@rac1 ~]$ . 12102.env
[oracle@rac1 ~]$
Linux Installation of Oracle Database 12C(12.1.0.2)
[root@rac1 ~]#
[root@rac1 ~]# xhost +
access control
disabled, clients can connect from any host
[root@rac1 ~]#
[root@rac1 ~]# su - oracle
[oracle@rac1 ~]$ cd
/u01/sftwr_12102/database/
[oracle@rac1
database]$
[oracle@rac1
database]$ ls
install response
runInstaller stage
readme.html rpm
sshsetup welcome.html
[oracle@rac1
database]$ ./runInstaller
Starting Oracle
Universal Installer...
Checking Temp space:
must be greater than 500 MB. Actual
27372 MB Passed
Checking swap space:
must be greater than 150 MB. Actual
29996 MB Passed
Checking monitor: must
be configured to display at least 256 colors.
Actual 16777216 Passed
Preparing to launch
Oracle Universal Installer from /tmp/OraInstall2017-12-21_12-46-12PM. Please
wait ...[oracle@rac1 database]$ You can find the log of this install session
at:
/u01/app/oraInventory/logs/installActions2017-12-21_12-46-12PM.log

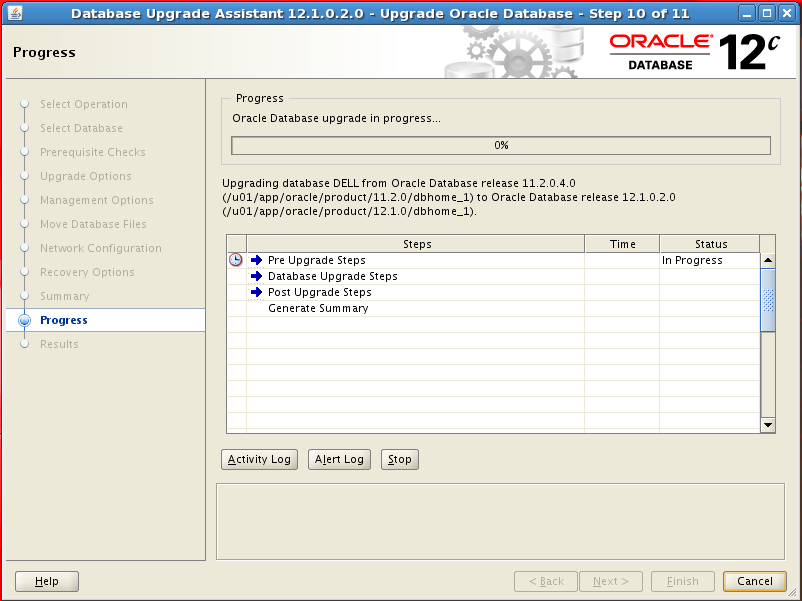

Upgrade Database using dbua
[root@rac1 ~]#
[root@rac1 ~]#
[root@rac1 ~]# su - oracle
[oracle@rac1 ~]$ . 12102.env
[oracle@rac1 ~]$ dbua
Thus we have successfully upgraded Oracle Database from 11204 to 12102 using DBUA.
This Article explains how to Upgrade ORACLE DATABASE in Linux Environment.
Thanks for Reading
Regards,
Mohammed Areefuddin
